LED Module M32L3Y2W

Features:

1. high output OSRAM LED, constant current

2. high efficiency, high uniformity lens, integrated transparent optic lens, 170°

3. CE, RoHS, and UL Certified

4. application depth: 10-25CM

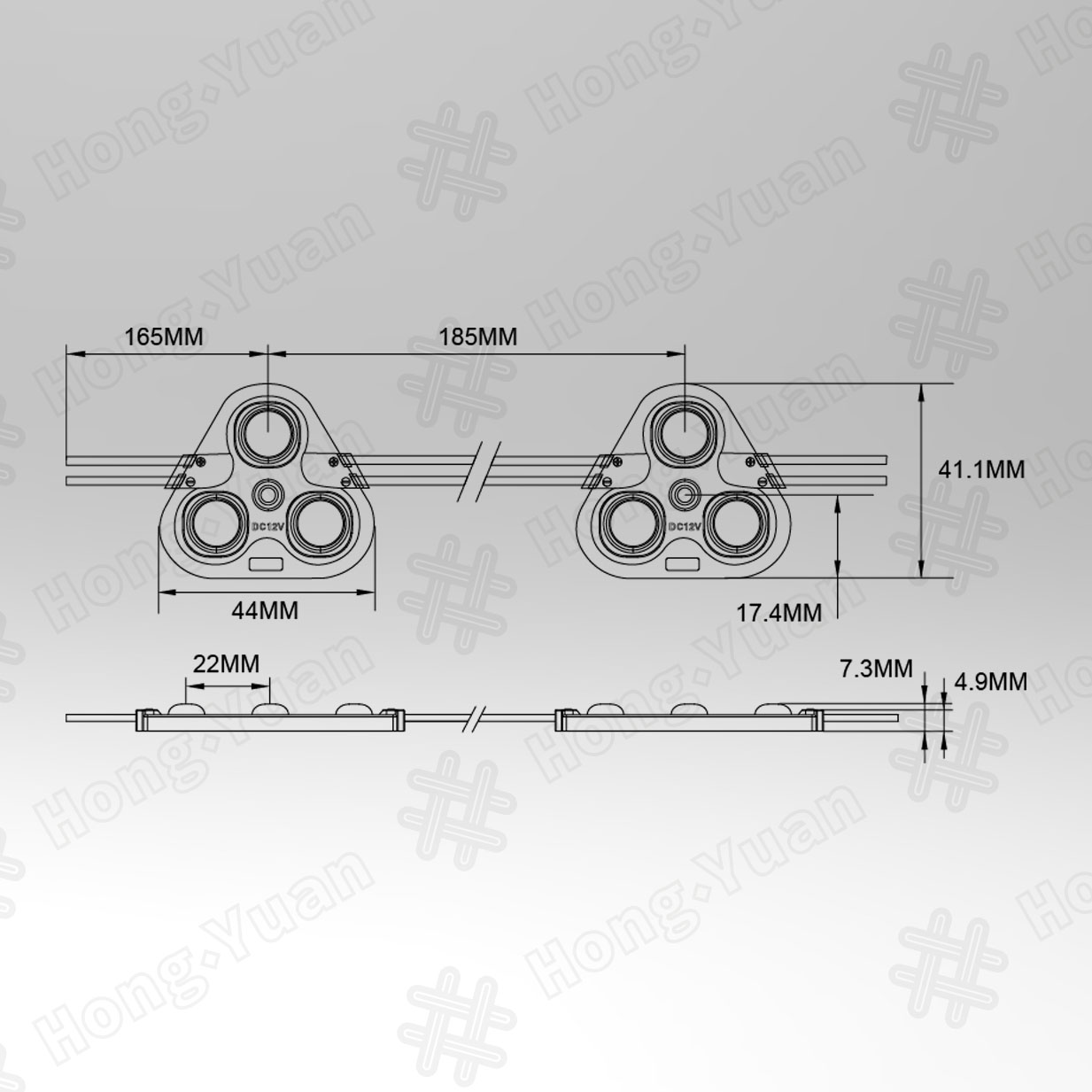

Dimensional Drawing:

Application:

  apply to 10-25CM depth illuminate letter or light box at airport, metro, bank, shopping mall, etc.

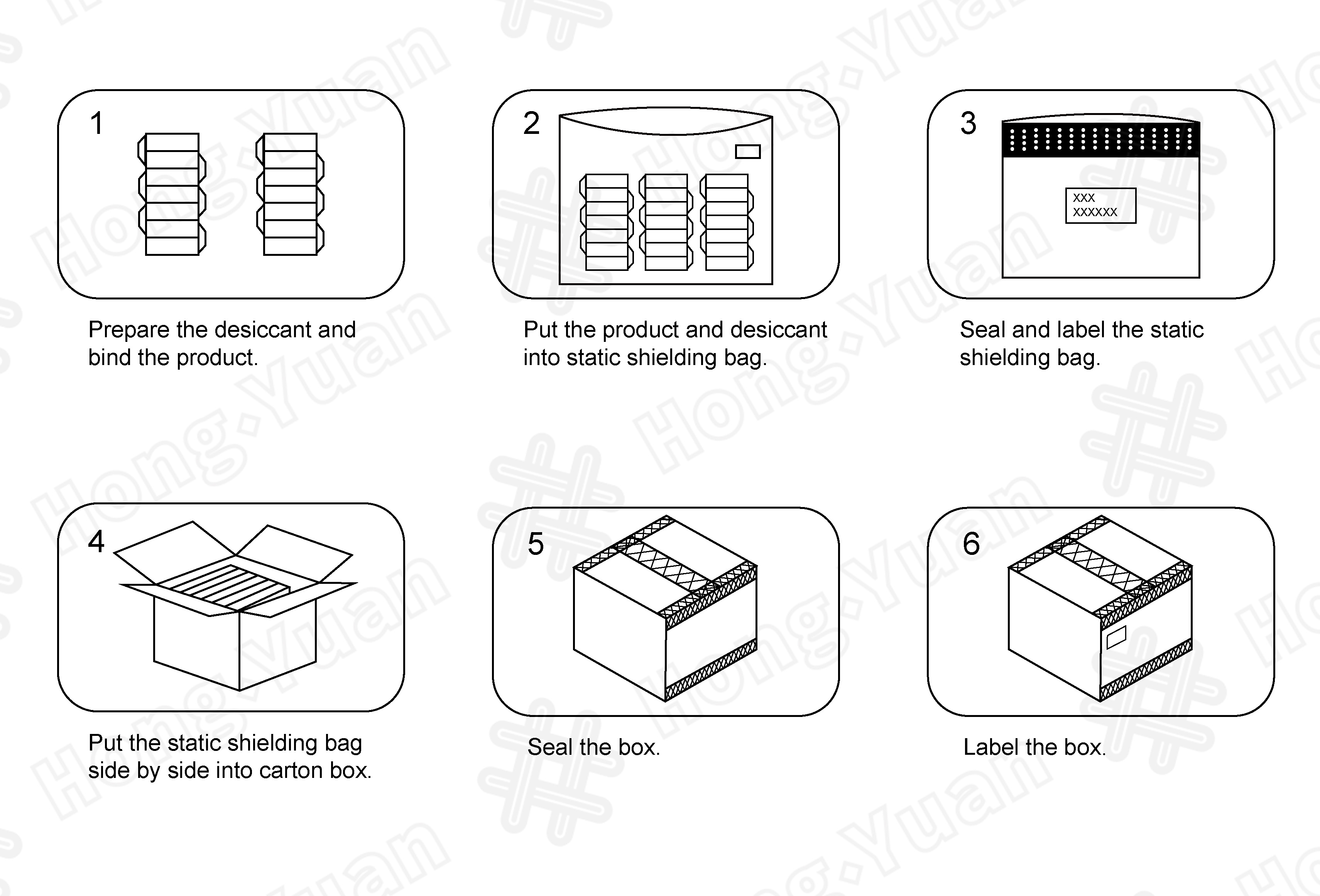

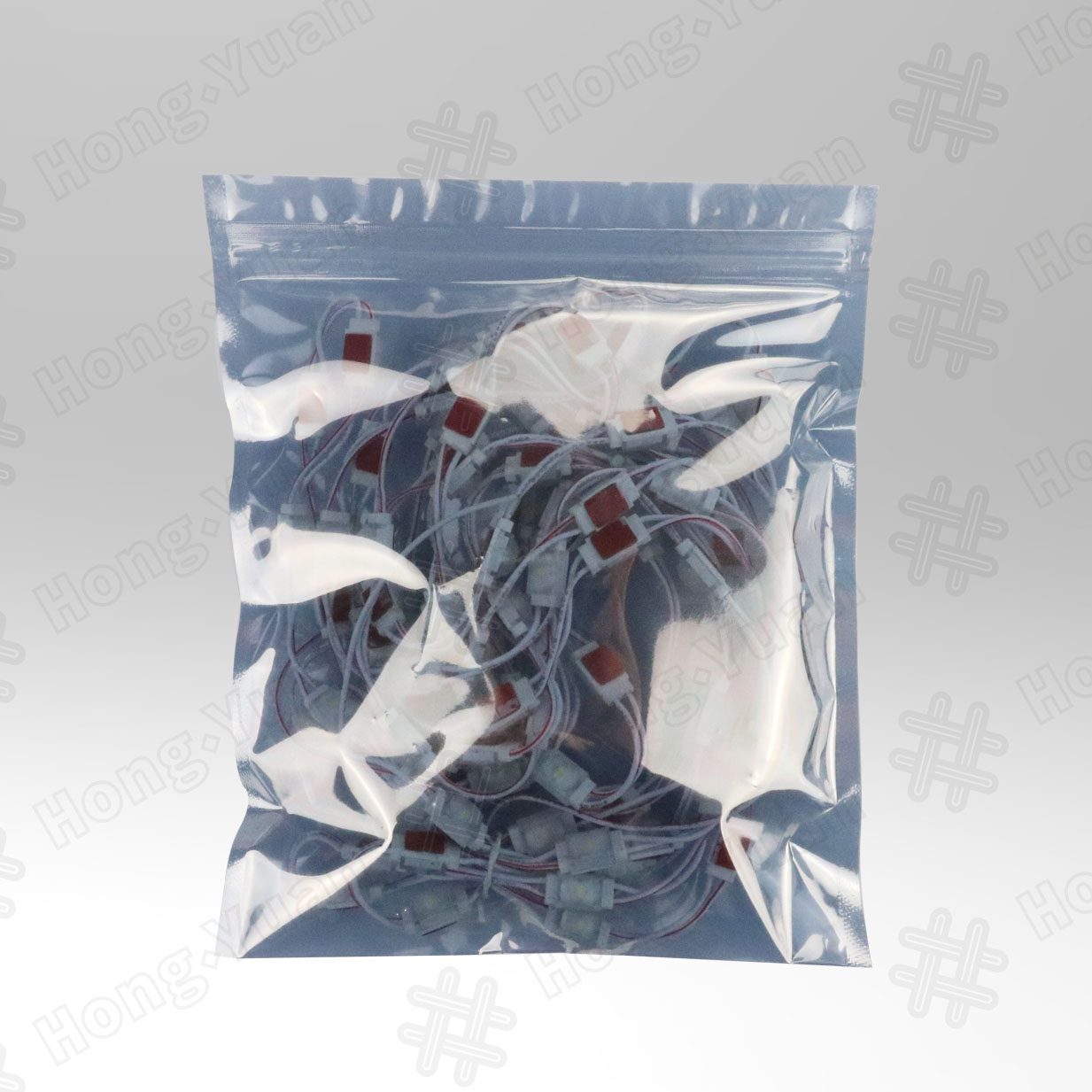

Inner Package: Static Bag+Carton Box

Outer Package: 5layers AB corrugated carton box; wood pallet available with less cost

QC Tracking:

1. LED Aging Testing

2. Specification testing: Thickness, Weight, Size, Lighting, Lighting, IP Grade....

3. Loading inspecting

Delivery Time:

Once the order is confirmed, the production can be finsihed within 7-15days

H&Y Warehouse Storage Condition:

All Hong Yuan products always need to be stored in their original packing and with the original protection materials, preferably stored hermetically and vertically, will  not be exposed to direct sunlight or heat sources. In order to avoid loss of quality, Hong Yuan products are stored in suitable conditions, that is at a temperature of  25°C ± 5°C and a relative humidity of 50 ±5%.

Production and Application Environment:

production environment: Temperature of 23 ± 2 °C, a relative humidity of 50%, clean dust-free environment without suspended matter
the surface can not be touched directly by finger; our workers always wear the white Glovesd during the production
